L4.1 U-Baffle Profile Metal Ceiling System Aluminum Square Tube Ceiling

Details
parameter

L4.1 U-Baffle Profile Metal Ceiling System Aluminum Square Tube Ceiling

Product name	Baffle Metal Ceiling System
Raw materials	Aluminum, Steel, Stainless steel, Metal
Product Type	U-Baffle，O-Baffle，V-Baffle ，Extruded profile Baffle
Panel Size (mm)	Cutomized
Thickness(mm)	0.8-2.0mm
Surface treatment	Bushed, PVDF painting,Film coated, Roll coated, Polyster oil-painting, Fluorocarbon oilpainting
Delivery time	15 - 25 Days

Whats/Wechat:+86-18126631618

Manufacture	China
Brand	Jayminton
Model	JMT-L4.1
Material	Aluminum Alloy 1100
Thickness	0.8-2.0mm
Colors/Style	Cutomized

L1 O-Baffle Ceiling System

Product name	Baffle metal ceiling System
Raw materials	Aluminum, Steel, Stainless steel, Metal
Product Type	U-Baffle，O-Baffle，V-Baffle ，Extruded profile Baffle
Panel Size (mm)	Customized
Thickness(mm)	0.8-2.0mm
Acoustic Felt	Local，Soundtex， Royalin， Lantor acoustic， Non-flammable felt options
Surface treatment	Bushed, PVDF painting,Film coated, Roll coated, Polyster oil-painting, Fluorocarbon oilpainting
Delivery time	15 - 25 Days

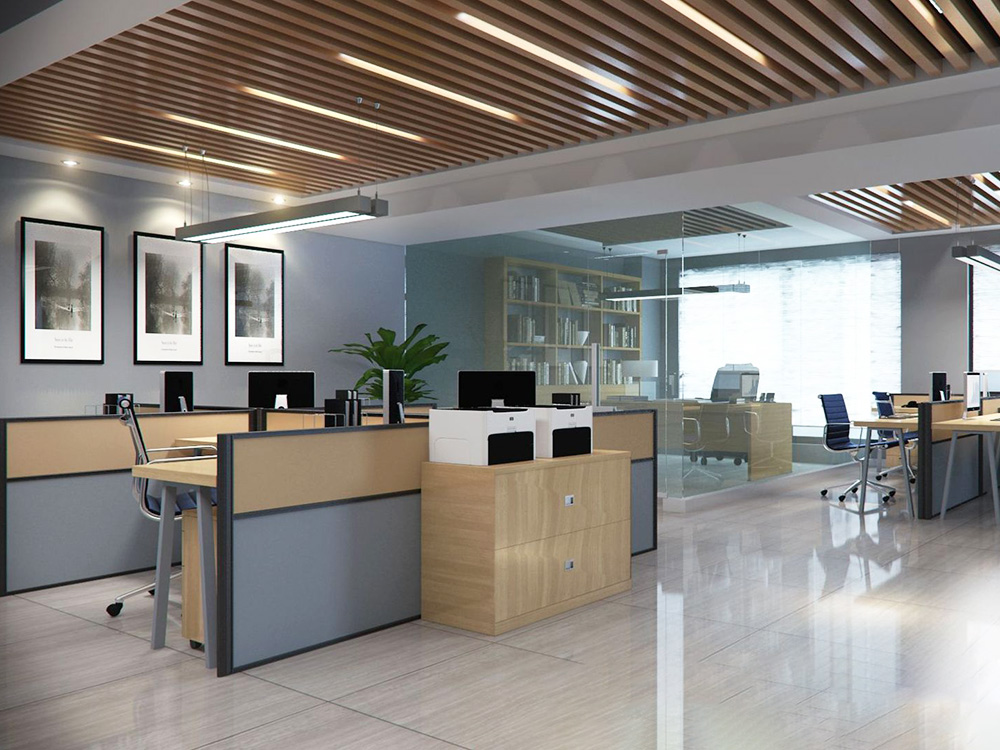

1000×750 (1).jpg

1000×750 (4).jpg

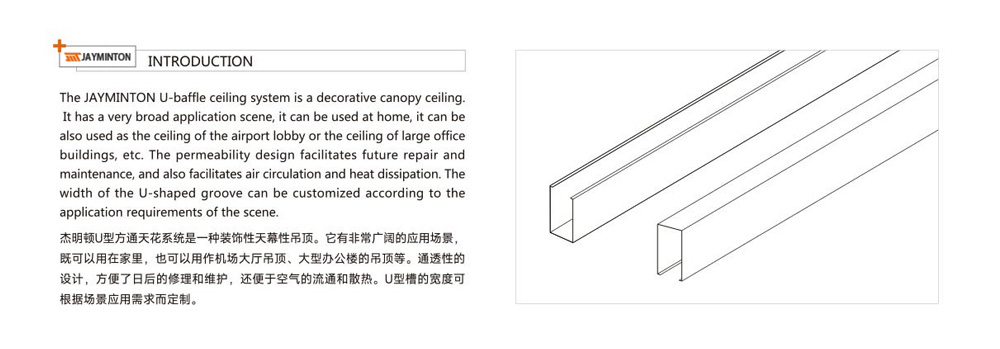

M (1).jpg

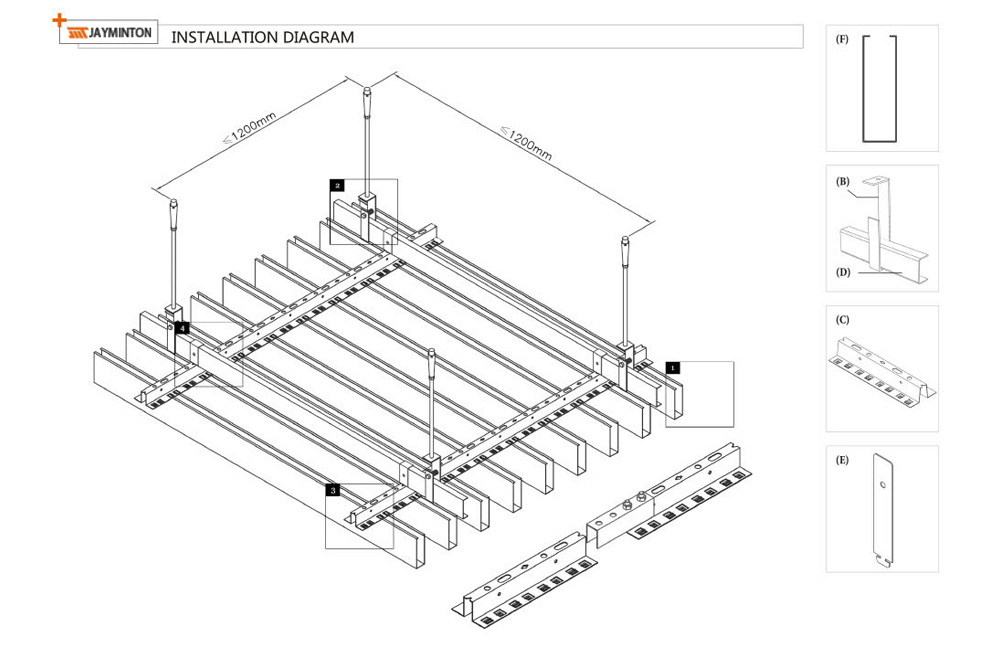

M (2).jpg

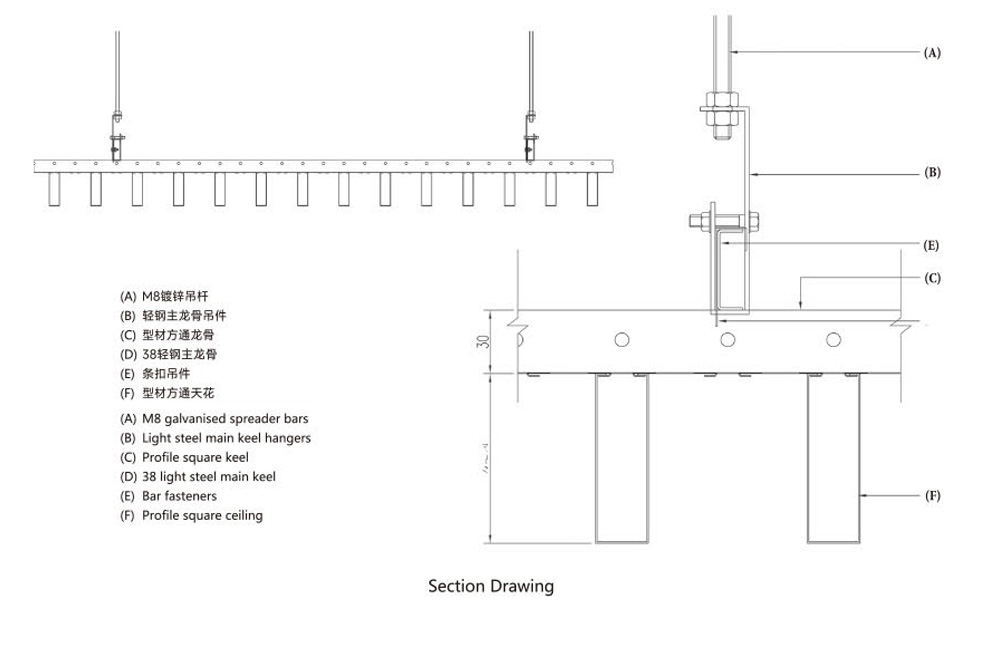

M (3).jpg

×
