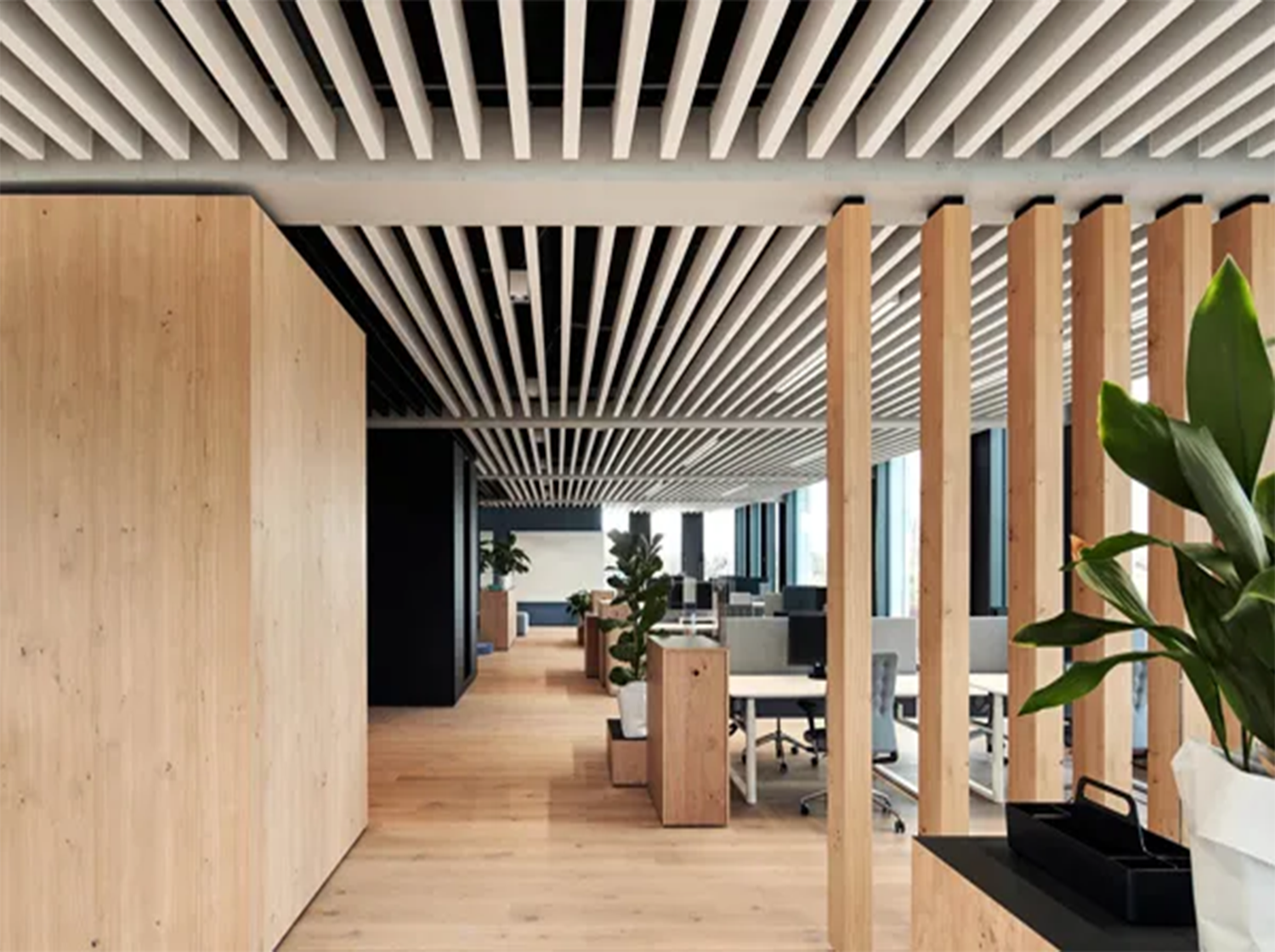

Aluminum Baffle Ceilings are a popular choice for both commercial and residential spaces due to their modern aesthetic appeal and practical benefits. Installing these ceilings requires careful planning and attention to detail to ensure a professional and durable finish. Here’s a comprehensive guide on how to install Aluminum Baffle Ceilings effectively:

Materials and Tools Needed:

1. Aluminum Baffle Ceiling Panels: Measure and order panels according to your ceiling dimensions.
2. Ceiling Suspension System: Including main runners, cross tees, and wall angles.
3. Level, Tape Measure, and Pencil: For marking and aligning.
4. Screws, Nails, or Rivets: Depending on the installation method.
5. Drill with Bits: For making holes as needed.
6. Safety Gear: Gloves, safety glasses, and ladder.

Step 1: Planning and Preparation

1. Measure the Ceiling: Measure the dimensions of the ceiling accurately to determine the number and size of baffle panels needed.

2. Choose Installation Method: Decide whether to install the baffles parallel or perpendicular to the main direction of the space. This affects both the aesthetics and the installation process.

3. Prepare the Surface: Ensure the ceiling surface is clean, smooth, and free of any debris or obstacles.

Step 2: Install Suspension System

1. Install Main Runners: Secure the main runners to the ceiling using appropriate anchors or screws, ensuring they are level and aligned according to your layout plan.

2. Install Cross Tees: Insert cross tees into the main runners at regular intervals as per the panel dimensions. Use a level to ensure they are straight and aligned.

3. Attach Wall Angles: Install wall angles along the perimeter of the ceiling to provide support and a finished edge.

Step 3: Install Aluminum Baffle Panels

1. Cut Panels if Necessary: Measure and cut the aluminum baffle panels to fit the remaining spaces at the ends of the ceiling.

2. Attach Panels to Cross Tees: Place the panels onto the installed cross tees. Depending on the design, panels may snap into place, or you may need to secure them with screws, nails, or rivets through pre-drilled holes.

3. Ensure Alignment: Double-check alignment and spacing between panels to maintain a uniform and aesthetic appearance.

Step 4: Finishing Touches

1. Inspect and Adjust: Once all panels are installed, inspect the entire ceiling to ensure everything is securely in place and aligned correctly.

2. Clean Up: Remove any installation debris and clean the surface of the panels to remove fingerprints or marks.

3. Final Checks: Test the installation by gently pushing on panels to ensure they are securely attached.

Step 5: Maintenance Tips

1. Regular Cleaning: Maintain the aluminum baffle ceiling by regularly cleaning with a mild detergent and soft cloth to remove dust and dirt.

2. Inspect for Damage: Periodically inspect the ceiling for any signs of damage or loose panels, and repair or replace as necessary.

3. Avoid Harsh Chemicals: Use only approved cleaning agents as harsh chemicals can damage the finish of the aluminum.

Conclusion

Installing an aluminum baffle ceiling requires careful planning, precise measurement, and attention to detail. By following these steps and safety precautions, you can achieve a sleek and professional-looking ceiling that enhances the aesthetic and functionality of any space. Whether for a commercial office, retail environment, or residential setting, aluminum Baffle Ceilings offer durability, easy maintenance, and a modern design that stands the test of time.
